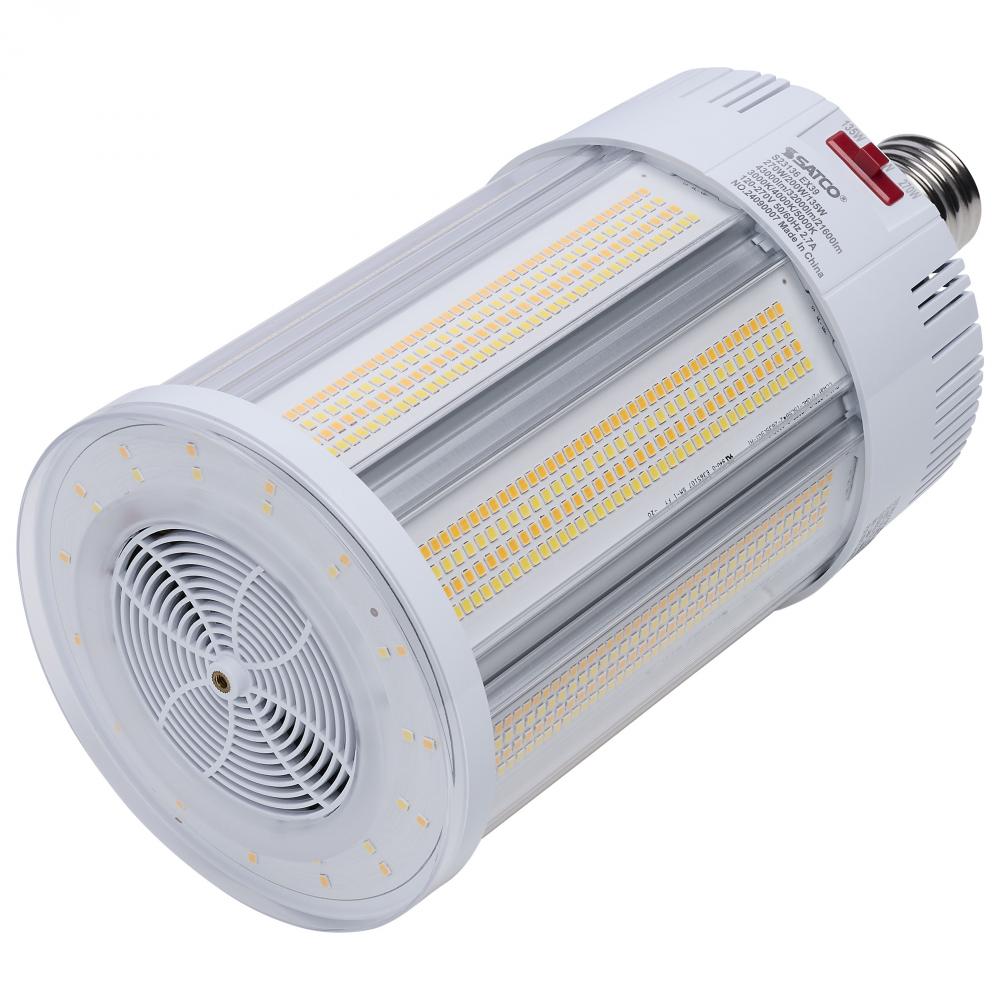

270/200/135 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277 by Satco Products Inc.
$
204
99
/ 1
- Part Number: S23136
- UPC: 00045923231360
- Availability: It appears the manufacturer has stock.
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

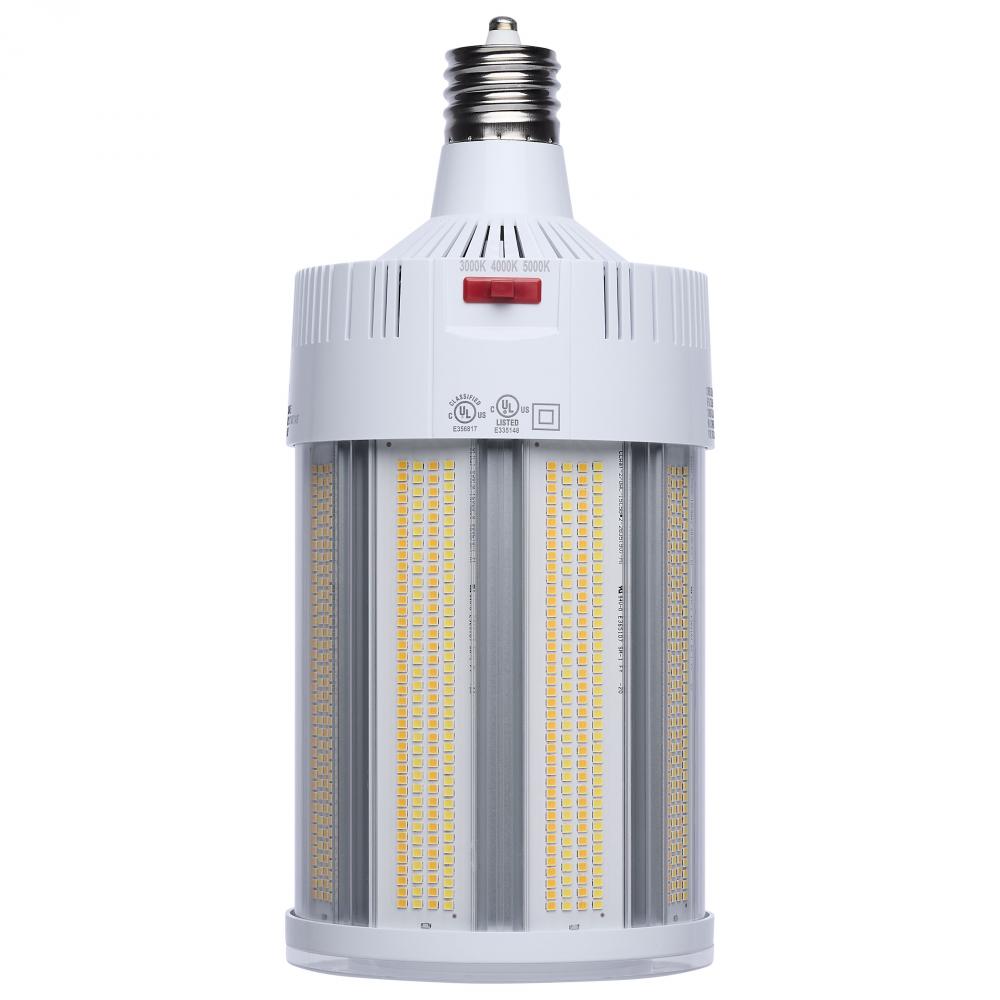

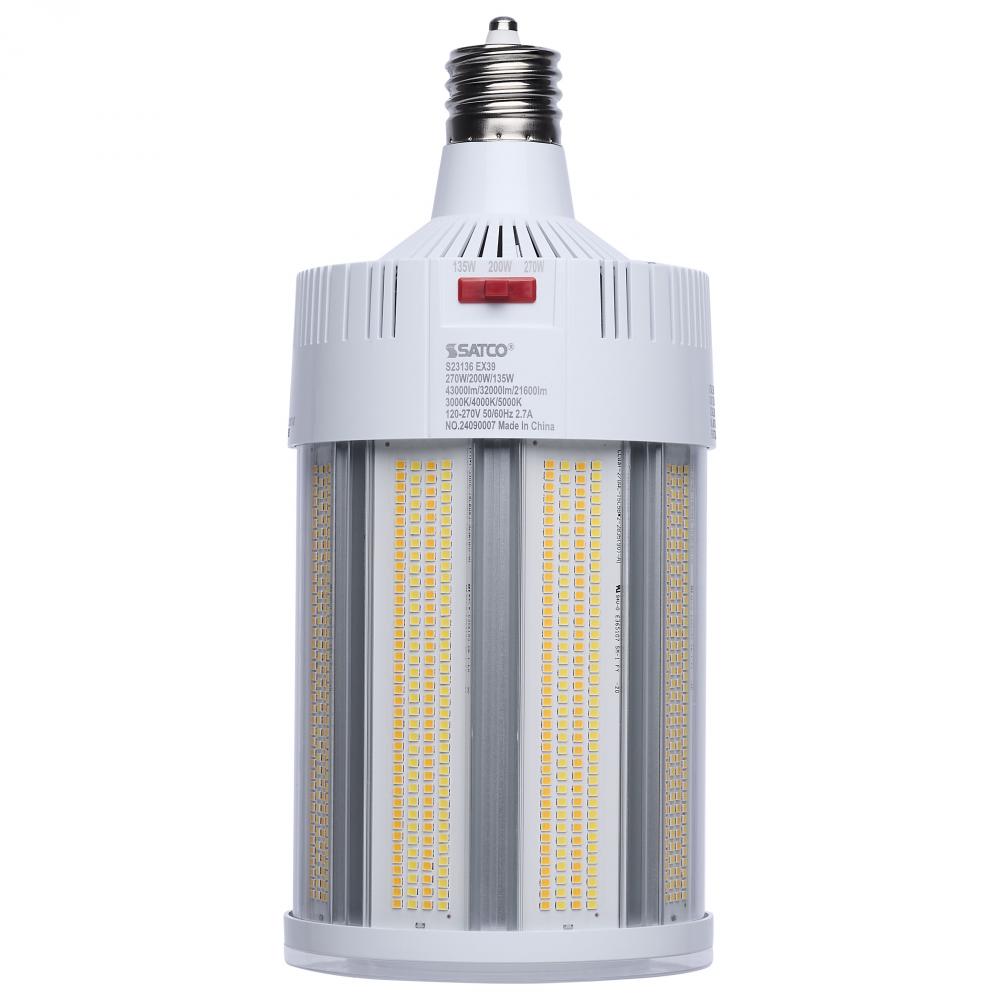

270/200/135 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277 Ranged Voltage; 600 Watt HID Replacement
Specifications
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
Corncob
Diameter:
5.6
EA Length:
5.91
Harmonized Codes:
8539.52.0091
Length:
12.3
Lumens:
45330L/34581L/24450L
Shap Carton Width:
5.91
Ship Carton Height:
14.17
Ship Weight:
3.5
Warranty:
5 Year Limited - High Lumen Hi-Pro
Weight:
3.56
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
170.9
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.2864
Cartons Per Unit:
1

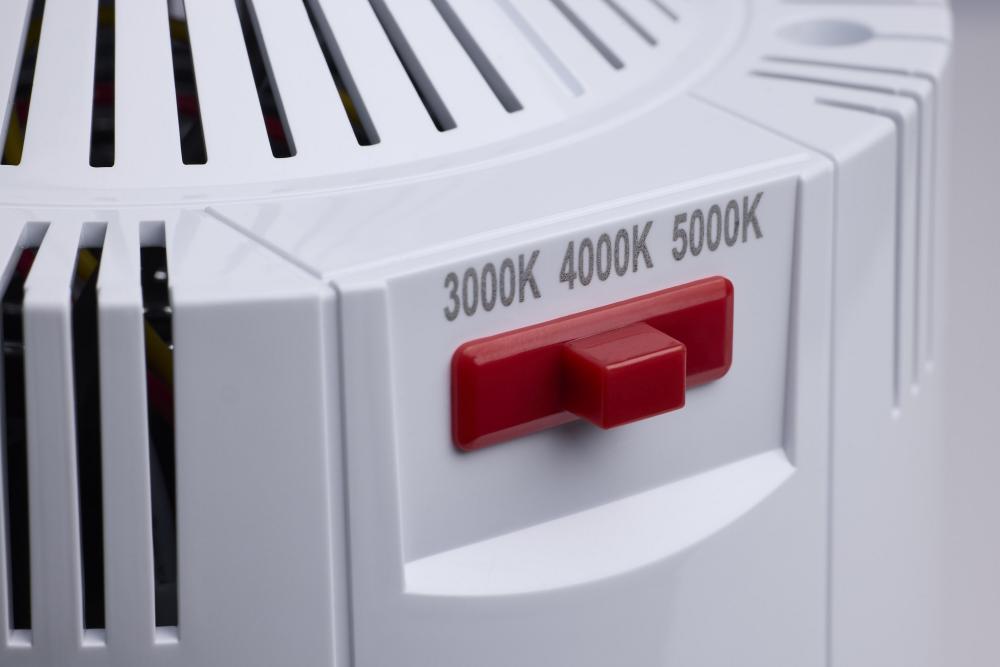

CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Natural Light
Country Of Origin:
China
CRI:
80+
Dimmable Function:
Only dimmable through wattage selection switch on lamp
Dimming Type:
Step Dimming
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-V5JZ45
DLC Primary Use:
Replacement Lamps for High-Bay Luminaires (Type B)
Efficacy:
167.89/172.91/181.11 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 10:
5 Year Warranty
Feature 2:
Range Voltage 120V-277V
Feature 3:
Very High Lumen Output
Feature 4:
Type B Ballast Bypass
Feature 5:

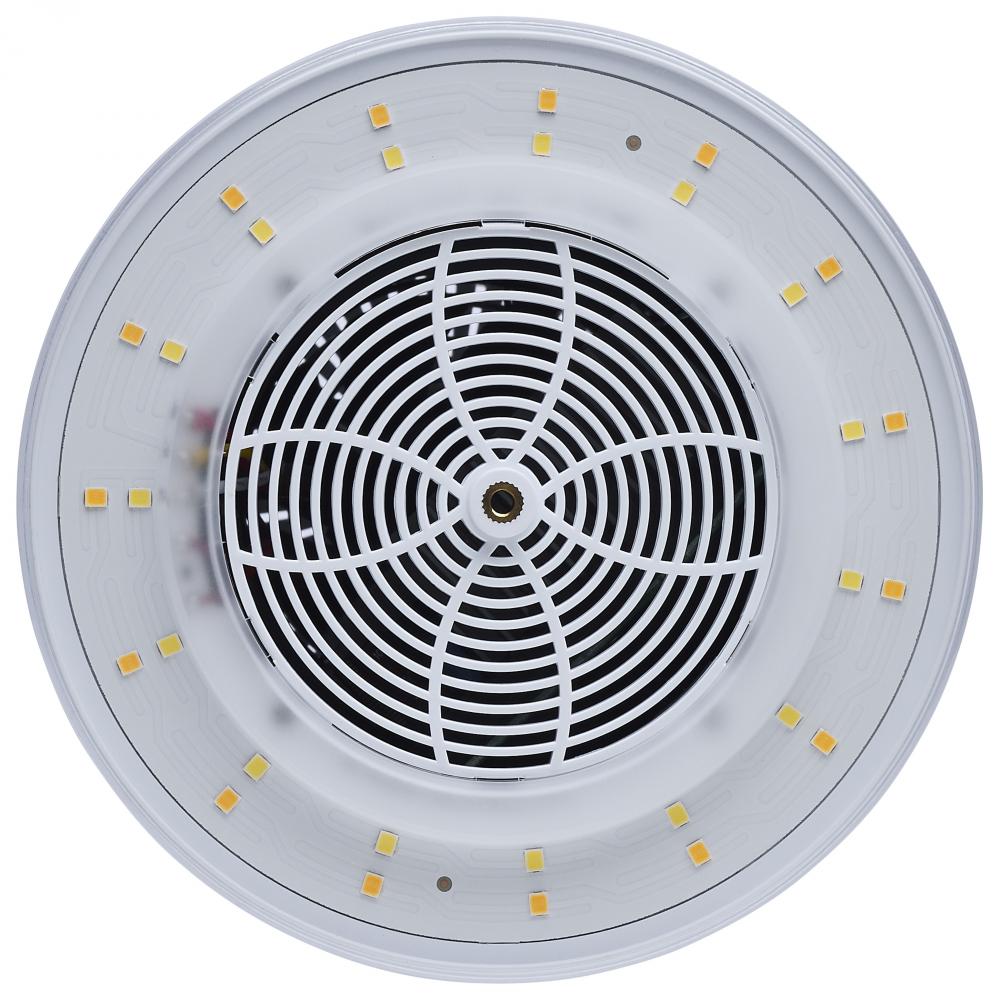

Integrated Active Cooling Fan
Feature 6:
Damp location rated
Feature 7:
Min Compartment Size 18.50" x 14.96" x 14.96"
Feature 8:
6kV Surge Protection
Feature 9:
50,000 Hour Functional Life
HID Equivalent:
600W
Housing Color:
White
Indoor Outdoor:
Indoor and Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP54
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
SATCO NUVO's S23136 Hi-Lumen Hi-Pro lamp delivers over 45,000 lumens, replacing metal halide lamps up to 600W with energy-efficient LED performance. Field-selectable wattage and CCT provide versatility, while the extended mogul EX39 base and enclosed f
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 18.50 in. Width:14.96 in. Height: 14.96 in.
Operating Frequency:
60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.99
Quantity In Pack:
1
R9 Value:
22
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO Hi-Lumen Hi-Pro lamps deliver exceptional LED illumination, replacing metal halide lamps from 450W up to 1000W. With a staggering maximum output of over 73,000 lumens, they provide superior brightness while improving energy efficiency and reduci
SDS class:
LED_Lamp
Short Description:
270W/LED/CCT/100-277V/EX39
Style:
Contemporary
Surge Protection:
Built-in surge protection - 6KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%

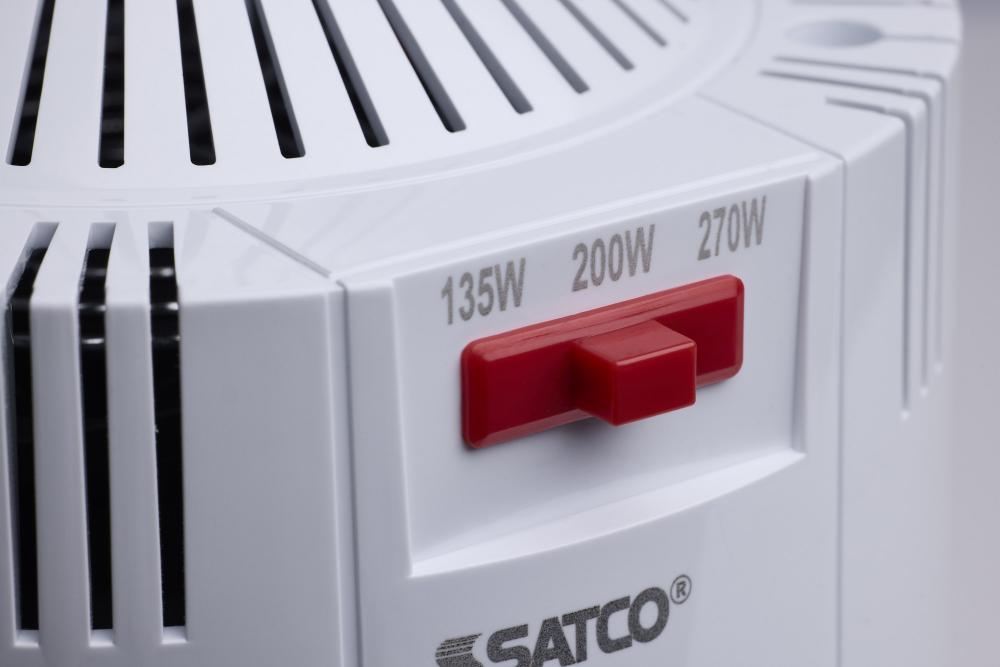

Wattage Selectable:
Yes
Watts:
270W/200W/135W
Manufactured By:
Satco Products Inc.
